ER-5110f
Ethernet to RS-485 Converter - Industrial Remote Control Module
● Supports Modbus TCP to Modbus RTU conversion.
● Supports dynamic IP (DHCP) and static IP settings.
● Supports LED indicators for communication.
● Up to 20 Modbus TCP clients (Master).
● Up to 32 simultaneous requests per client (Master).
● Up to 4 whitelisted access control entries.
● Build-in EEPROM.
● Build-in Watchdog function.
● Short circuit protection
● ESD protection for the RS-485 data line
● 3000 VDC isolation protection on the RS-485 side

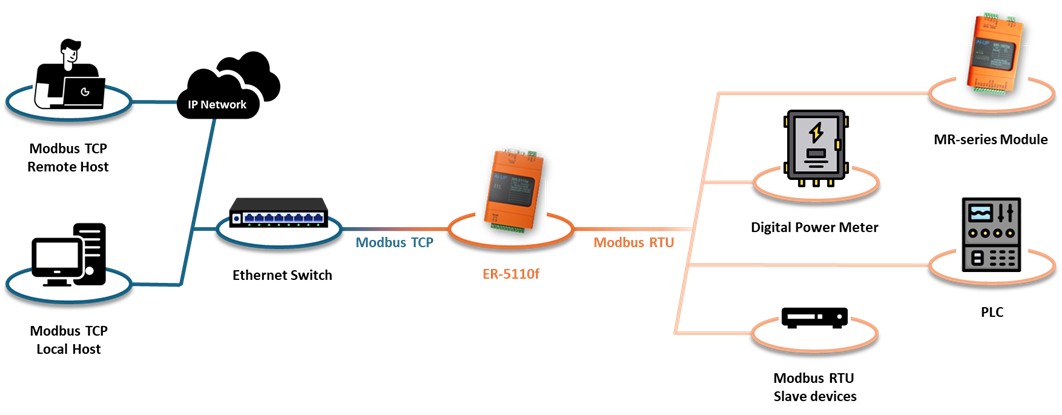

Modbus is a widely used industrial communication protocol for data exchange between RS-485 and Ethernet devices. The ER-5100f Ethernet to RS-485 converter supports both TCP and UDP transmission, enabling Ethernet systems to interface with RS-485 devices and overcoming traditional serial communication distance limitations to enhance flexibility in industrial applications. The module includes an IP whitelist access control mechanism, allowing connections only from specified IP addresses to improve security and prevent unauthorized access.
The ER-5100f offers flexible network configuration options, including DHCP for dynamic IP assignment and manual settings for static IP, ensuring compatibility with various network infrastructures. Additionally, it supports parameter configuration for MR series modules and enables seamless control of RS-485 devices through Modbus TCP, providing an efficient solution for centralized control and monitoring in industrial automation.
