■ Introduction

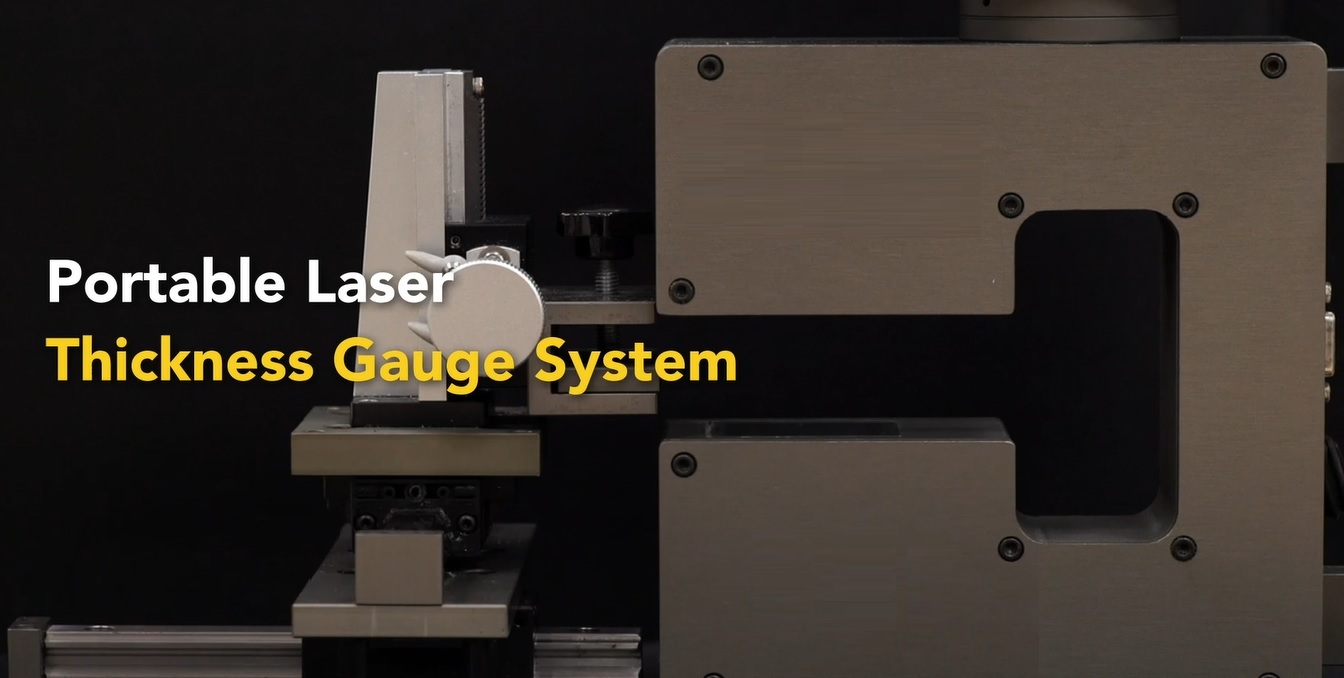

    "Portable Laser Thickness Measure System" measures thickness in static with micron (μm) accuracy. It combines precise algorithm and high precision, high stability lasers. It also has the benefits of non-contact, instant monitoring, continuous measuring and no radiation damage. The measurable materials include non-penetrating materials such as metal, non-metal, wafer, resin, plastic film, paper and fiber.

■ Applications
    - Quality Control Application
    - Non-penetrating Thickness Measurement
    - Factory Automation
    - Machine Automation
    - Quality Verification
    - Product Traceability

■ Technical Data

	LTMS_P
Measuring range (mm)	10
Measuring depth (mm)	200
Measuring frequency (Hz)	10k
Display Resolution (μm)	1
Accuracy (μm)	±5
Dimensions [ L× H× W ] (mm)	000 × 000 × 00
Weight (kg)	00
Laser class	2
Laser color	Red
Protection class	IP65

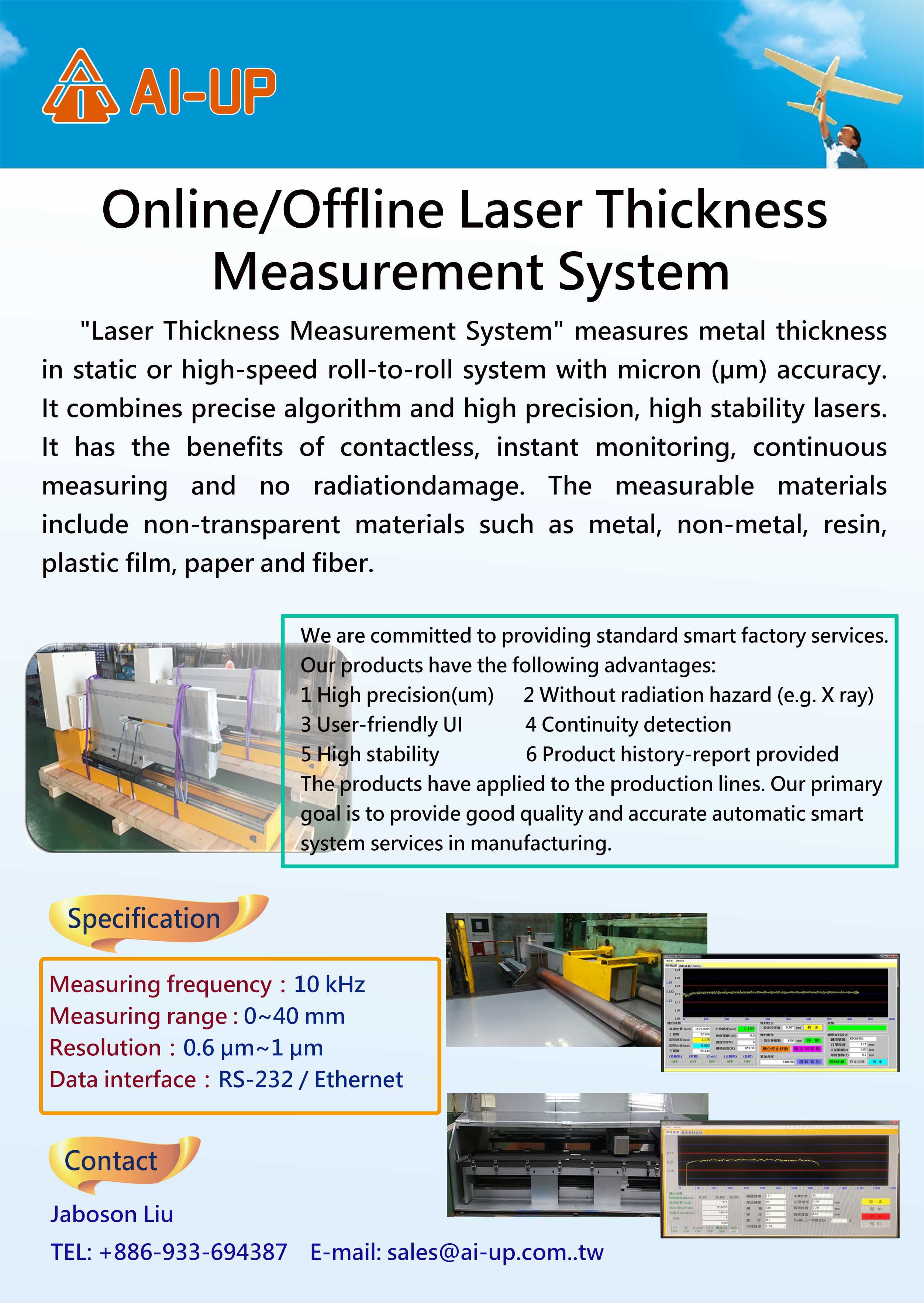

■ Data Sheet Download
