■ Introduction

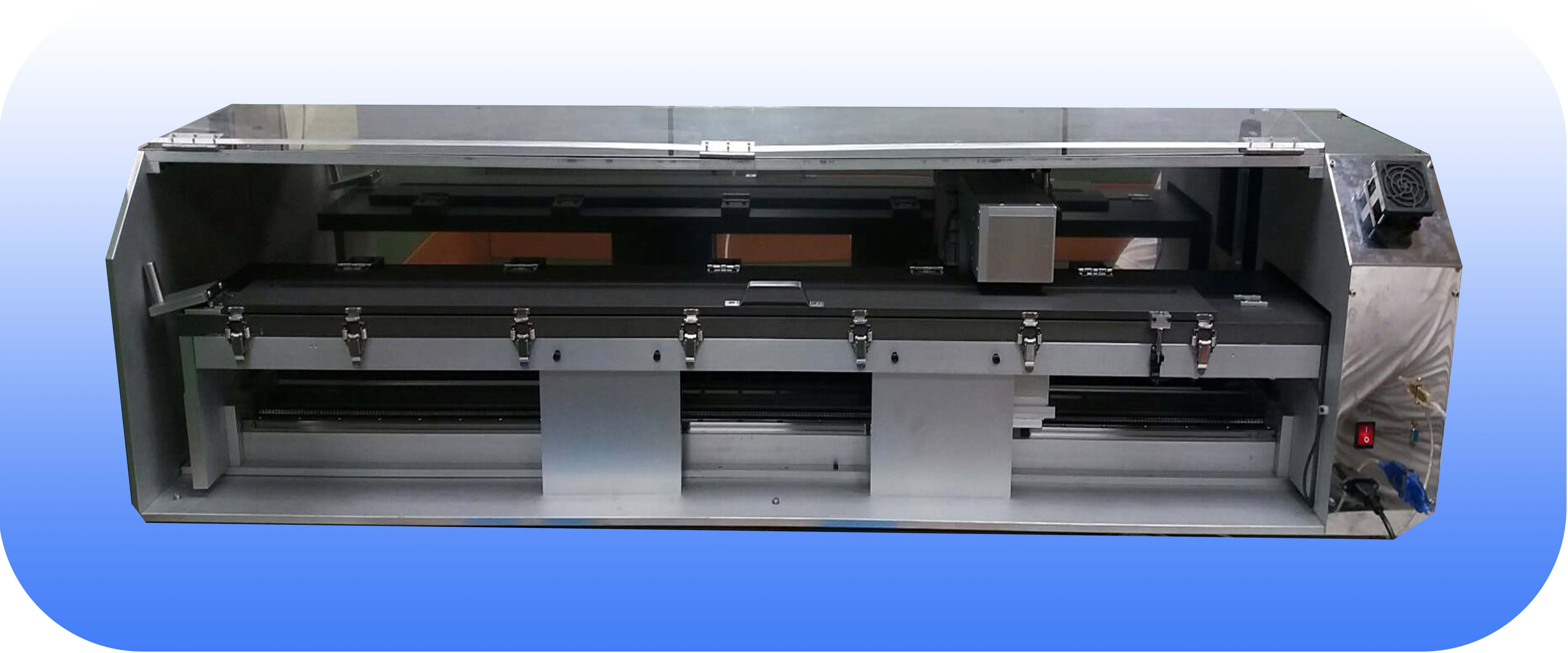

    "2D Laser Profile and Thickness Measure System" measures flat object's profile and thickness in static with micron (μm) accuracy. It combines two precise algorithm and high precision, high stability lasers. It also has the benefits of non-contact, fast measuring and no radiation damage. The measurable materials include non-penetrating materials such as metal, non-metal, wafer, resin, plastic film, paper and fiber.

■ Applications
    - Quality Control Application
    - Quality Verification
    - Non-penetrating Thickness Measurement
    - 2D Profile Measurement
    - Machine Automation
    - Product Traceability

■ Technical Data

	LTMS_2D
Measuring range (mm)	10
Measuring length (mm)	1300
Measuring frequency (Hz)	10k
Display Resolution (μm)	1
Accuracy (μm)	±5
Dimensions [ H × L × W ] (mm)	000 × 000 × 00
Weight (kg)	00
Laser class	2
Laser color	Red
Protection class	IP65
